Calculate a rolling sum in Visual SQL

You can calculate a moving average in Chartio by using our Moving Average guided formula in the Pipeline using a Calculated Column or Edit Formula Action. In the event you’d like to calculate a rolling sum (or moving sum), you can easily edit the Moving Average to multiply it by the selected period.

In the example below, we create a chart that pulls the count of users per day. Here, we also want to include a column that calculates the rolling sum of the count of users in the last seven days. This is different from a standard running total because it only includes the sum of the previous seven rows of data.

To do this, follow the steps below:

  1. Start by building a chart for the count of users per day.

    Here, we use our SaaS Company Demo Data data source and add the Created Date and User Id columns from the Users table to our Query, keeping the grouping and aggregation as Day and Count of distinct, respectively. Click Run Query.

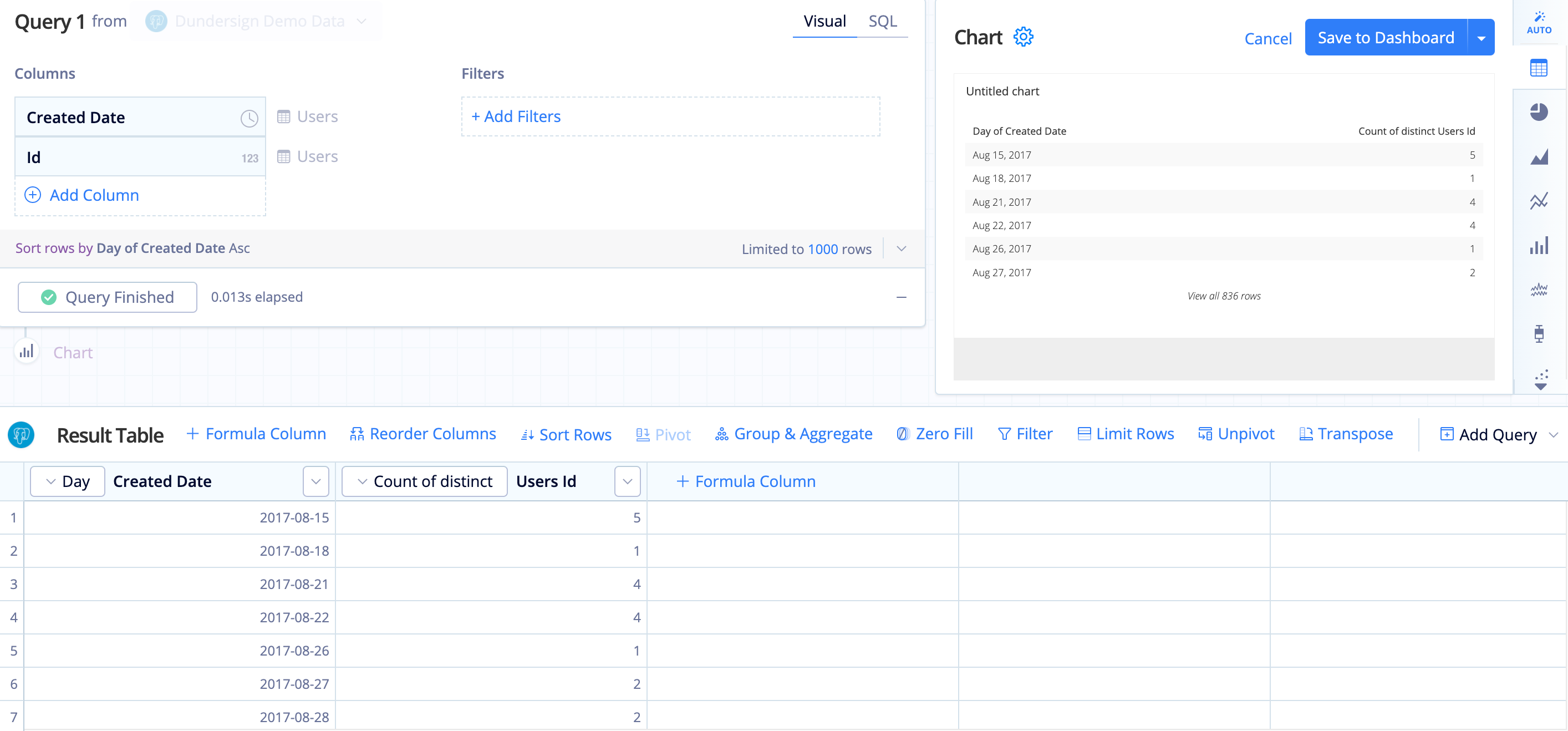

    Create the initial query for the chart

  2. Add a new column to your result set to calculate the moving average.

    Click Calculated Column above the Result Table, select moving average from the list of guided formulas. For the parameters, choose User Id as the input column and type 7 for the number of trailing rows to calculate the moving average for the last seven days. Click Save.

    Note: If you don’t have rows for every day and want to make sure you calculate null values for the last week, add a Zero Fill Action before the Calculated Column Action.

  3. The moving average is simply the sum of the last seven values divided by 7. Therefore, we can get our rolling sum by multiplying the moving average by seven.

    Add another Calculated Column to do exactly that. Simply select Custom as the formula type and use the following formula, replacing moving_average with your custom column from Step 2.

     "moving_average" * 7

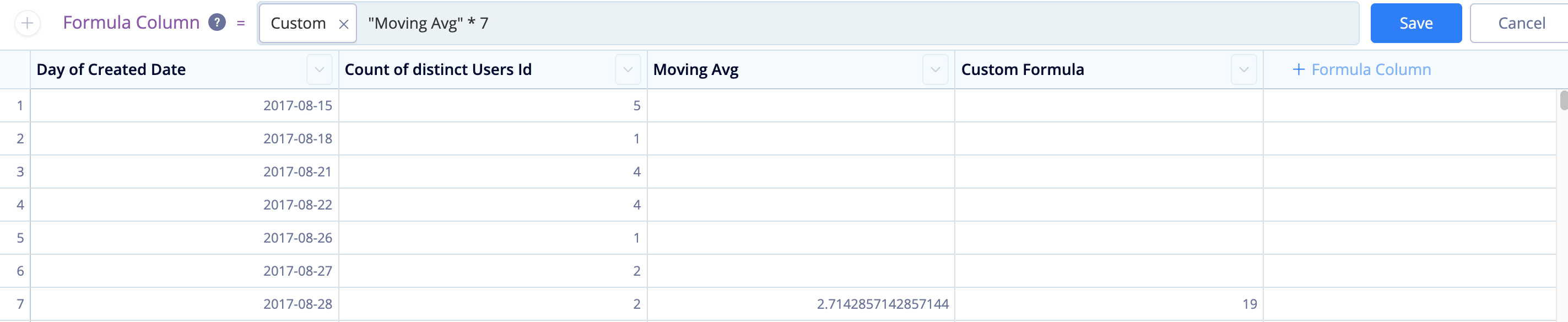

    Add another Calculated Column to define Rolling Sum

  4. For clarity, rename this column to Rolling Sum.

  5. Since it’s no longer necessary, hide the Moving Avg column from your result set.

  6. Switch your chart to a Line chart from the chart types to visualize your daily user count compared to the rolling user sum. Don’t forget to save your chart to your dashboard when done.

    Final Line chart with rolling sum of user IDs
