Calculate a running total in Data Explorer

A running total is a common metric to gain insight into how an amount has changed over time. This process can be easily accomplished in Chartio by utilizing the Data Pipeline to transform your data.

First, open your existing chart or create a new chart if you do not have an existing chart from to work from. At a minimum, you’ll need to include the measure for which you’d like to keep a running total and at least one dimension that will be used to group the running total. For your dimension, we recommend using a date with a time bucket of your choice to best visualize the data you’re interested in seeing such as month or year.

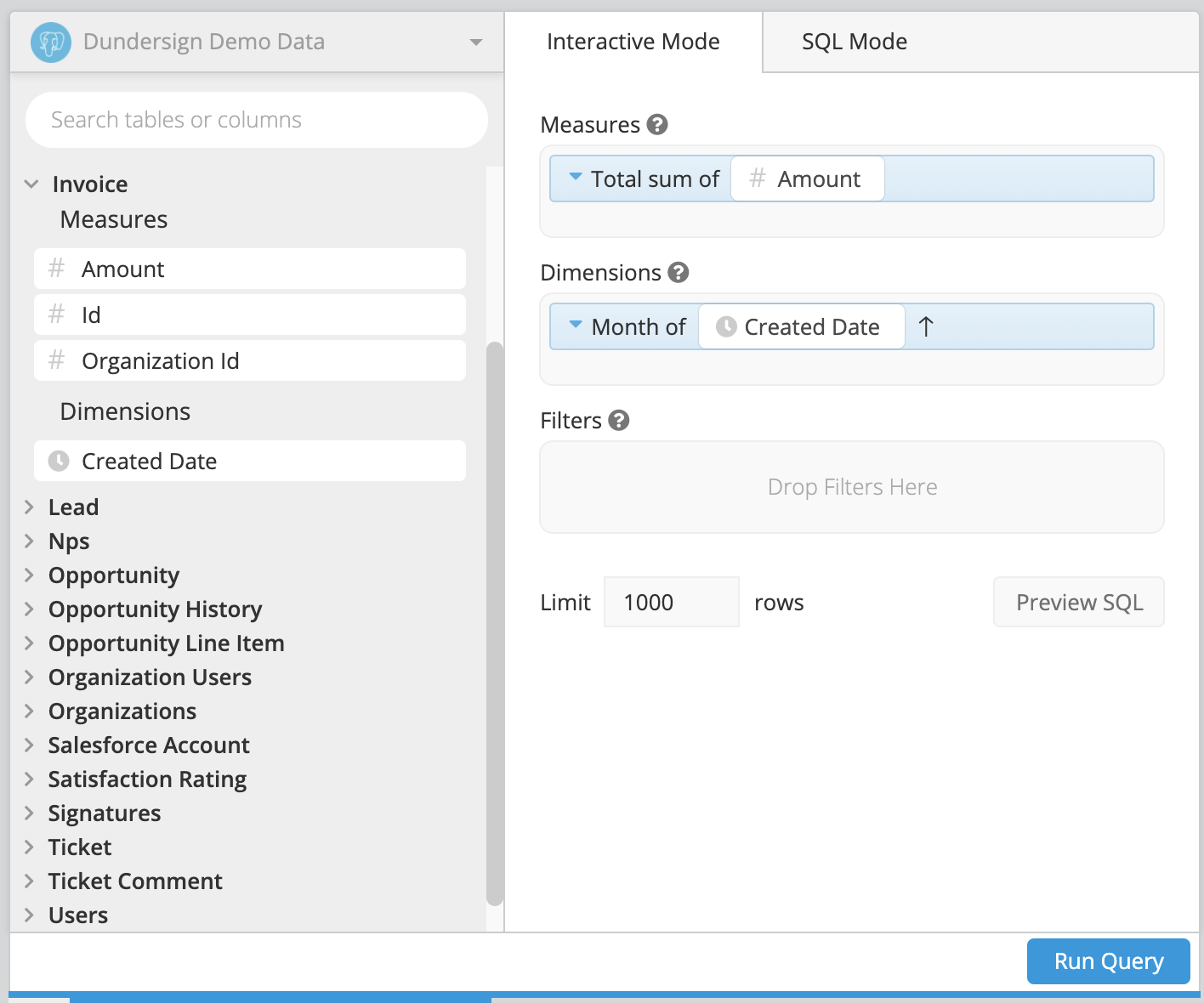

In this example, we’ll be using our Dundersign Demo Data data source. From the Invoice table, we drag the Amount column to the Measures field and use the Total sum aggregation. From the same table, drag the Created Date column to the Dimensions field and select the Month time bucket. Once you’ve added the columns to your dataset, click Run Query to populate the chart.

Example: sum of Payments for Measure and month of Payment Date for Dimension

You’ll then need to edit the query results using the Data Pipeline. Click + Add Transformation below your Dataset and choose Edit Column or Add Column (if you’d like to keep the original data as part of the chart). Here, we’ll choose Add Column.

Give your new column a name, select Running total as the Formula Type then select the column you’d like to be used as the input column for the running total. For this example, we’d select Total sum of Amount. Click Apply & Close once completed.

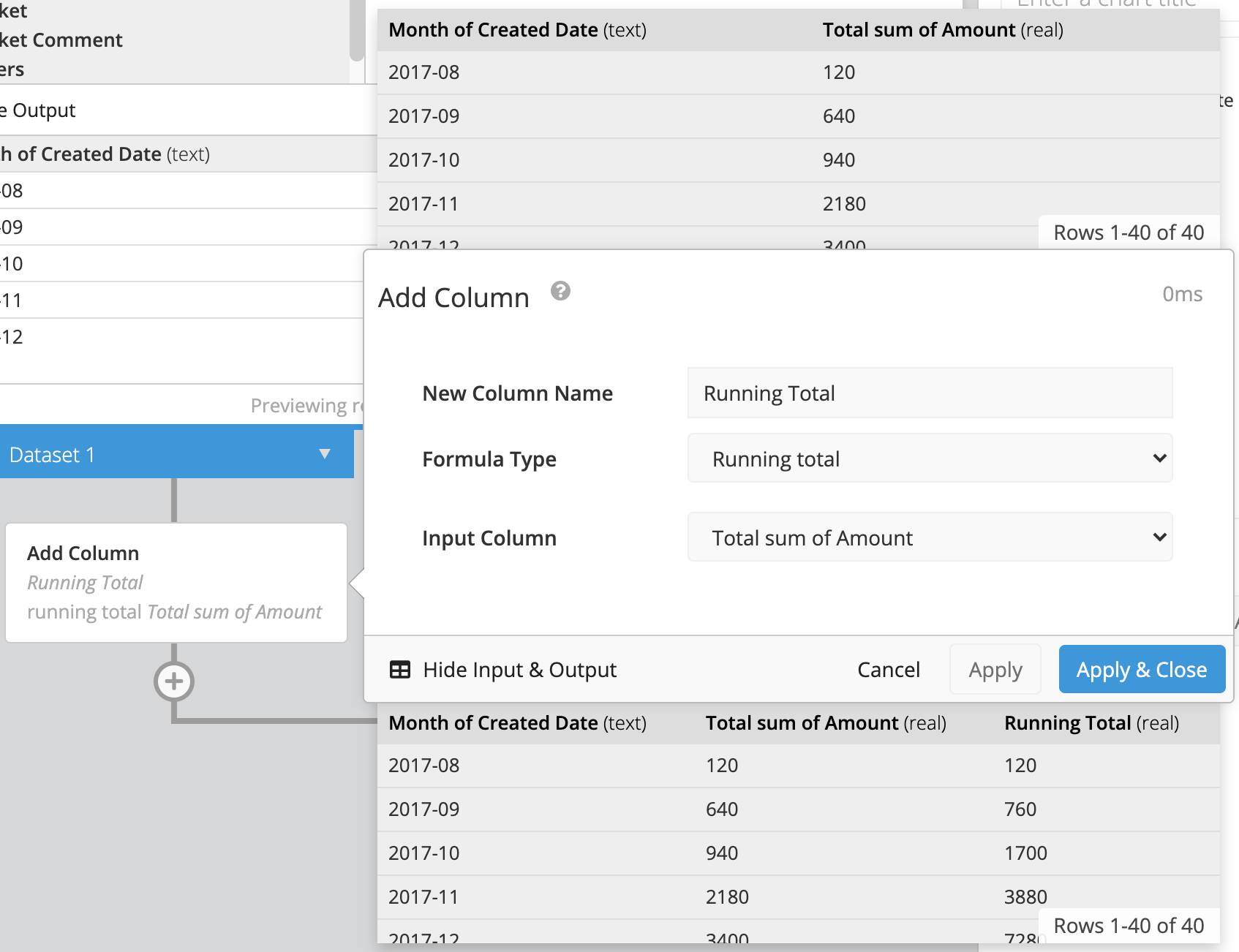

Add running total column in the Pipeline

To get a clearer view of how the total changes over time, change the chart type to a Line chart.

Final chart with running total

Running total by group

You can also create a running total for groups using SQLite Window Functions.

For example, we’d now like to see the amount we’ve made over time but now, grouped by plan type. To do this, we’ll need to utilize Custom formulas in our Add Column or Edit Column Pipeline steps.

You’ll want to utilize the following statement which calculates the sum of Column1 for the groups in Column2 following the order of rows in Column3.

sum("Column1") over (partition by "Column2" order by "Column3")

In this example, we used the following statement to get the running total of the “Total sum of Amount” for each type of plan “Title”, ordered by the “Month of Payment Date”.

sum("Total sum of Amount") over (partition by "Title" order by "Month of Payment Date")

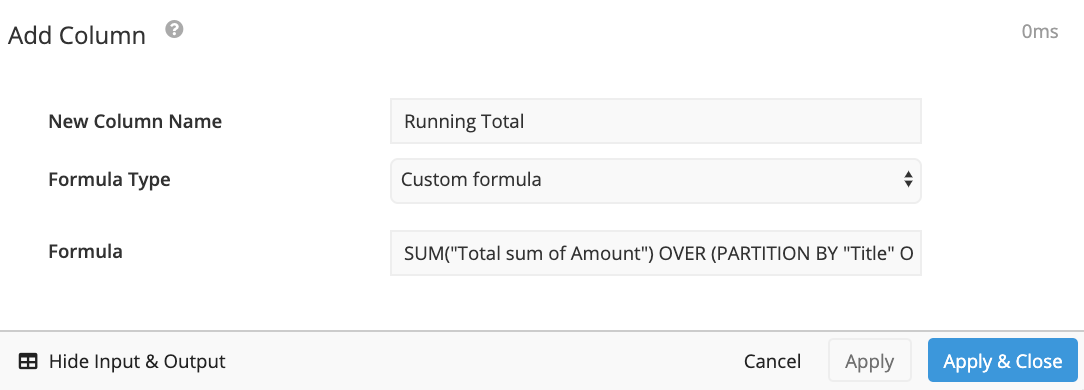

Running Total by Plan type

We can now see the running total in our table below. As we’ve added a partition by clause, the running total starts over for every new, unique value in the “Title” column. This same formula can be used in a number of ways such as calculating the running total by month.

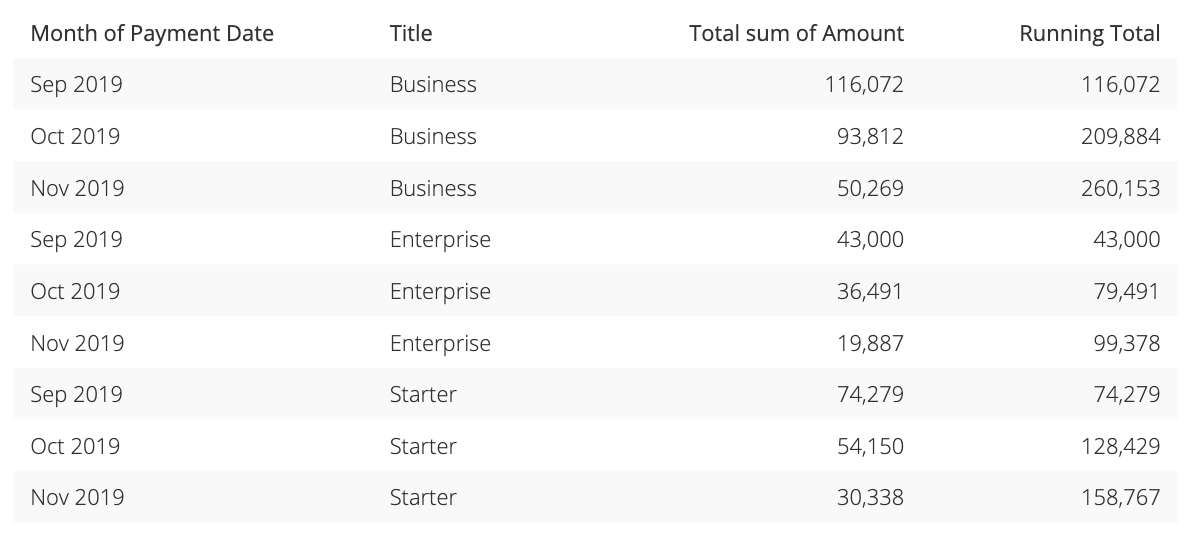

Running total for Amount by plan type
