Add a target line to your chart

There may be times where you’re looking to compare a chart’s results against a certain data point. You can do this by adding a target line to your chart using Annotations or creating a target column in your chart.

Annotation

You can easily add an Annotation to your chart in your chart settings if you prefer to add a static target value. Annotations are especially useful if your chart has a dual axis or contains a large number of columns.

Target line using annotations

Column

Another option is to directly add your target amount within your chart as a separate Target column.

In the following example, we created a Bar chart that outlines the number of users per month using our SaaS Company Demo Data data source. We have a goal of 5,500 users per month and would like to visualize our progress against this goal.

If your target value is already available within your database, you can simply add the column to your chart’s query. If that data doesn’t exist in your database, you can create a new column using a Calculated Column Action (Visual SQL) or an Add Column Pipeline Step (Data Explorer), selecting Custom Formula for the formula type, then assigning a static value to the column (e.g. 5500) that will show as the benchmark for every time period.

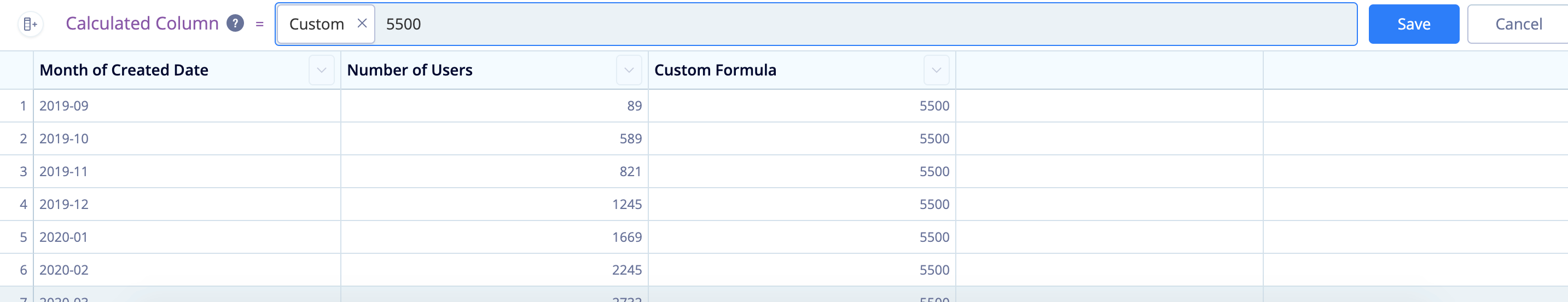

In the Visual SQL interface
Use a Calculated Column to add a Target column to your result set

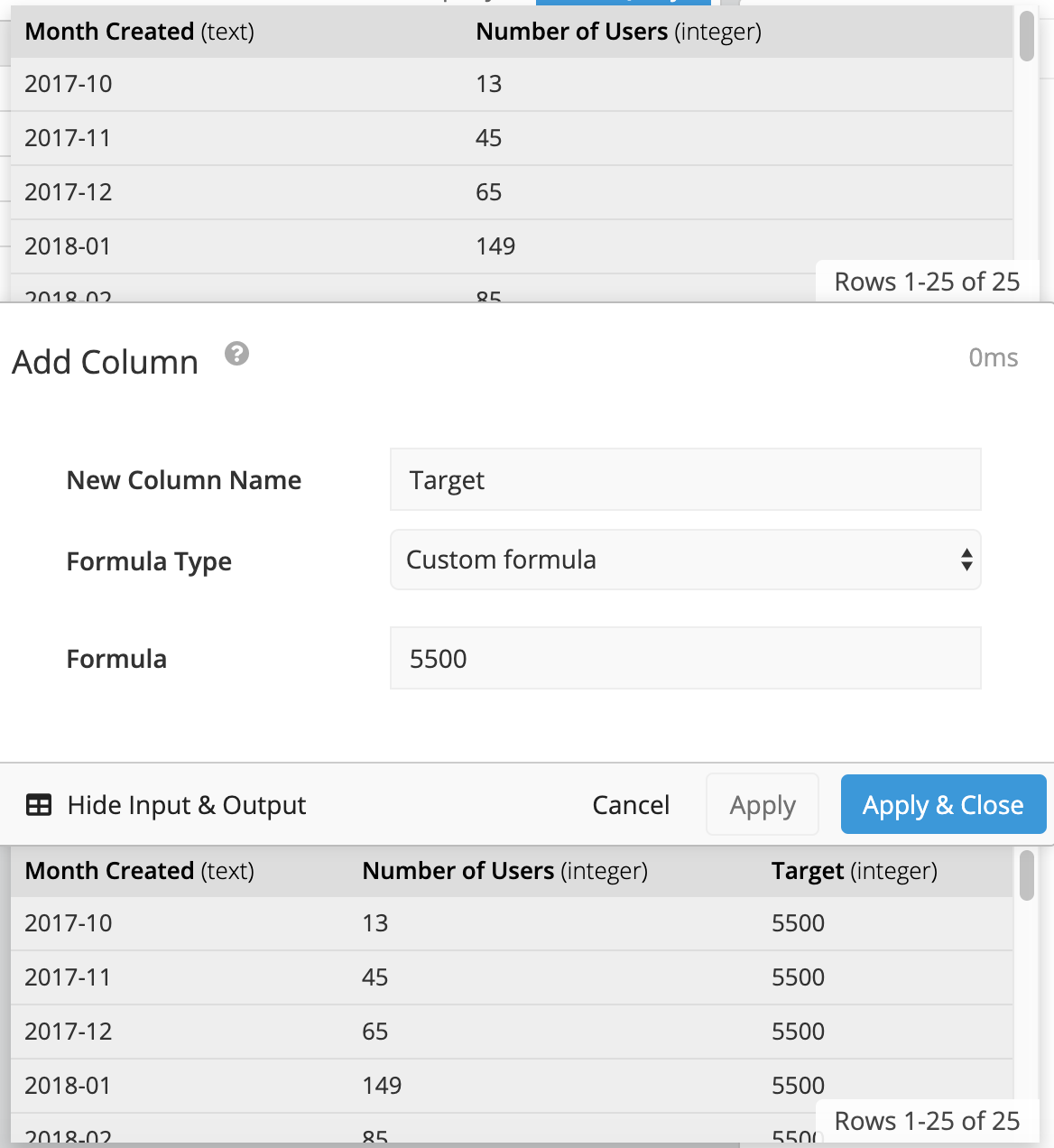

In the Data Explorer interface
A custom value will act as your benchmark

We recommend setting the chart type to a Bar Line chart to allow your target line to show up as a line and differentiate it from the rest of your data.

Change the Bar chart to a Bar Line chart so your target line will show

Customize your target line

When adding a target line as a column in your chart, you also have the option of customizing the line’s value using formulas, Dashboard Controls, Relative Dates, or other non-static values.

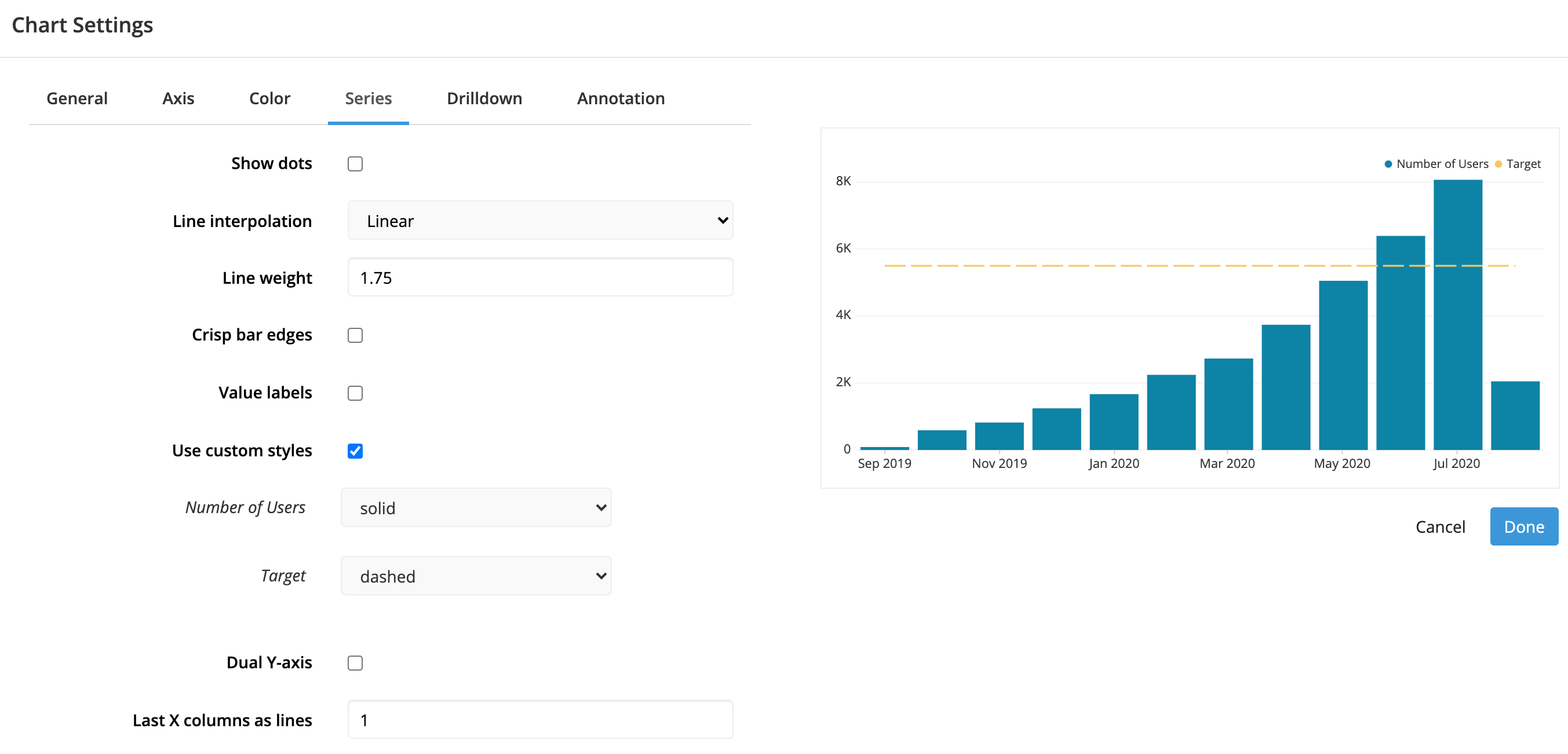

Once your target line is set, you can also customize how the line is displayed on your chart via the Series tab in the chart settings. From there, you can set a thicker line width, choose to whether or not to show dots on the line, and even set how the line looks by clicking the Use custom styles checkbox and selecting the desired line style.

Make sure to click Done and save your chart once you’re done editing the settings.

Customize target line
